Guiding Sticks
Suction

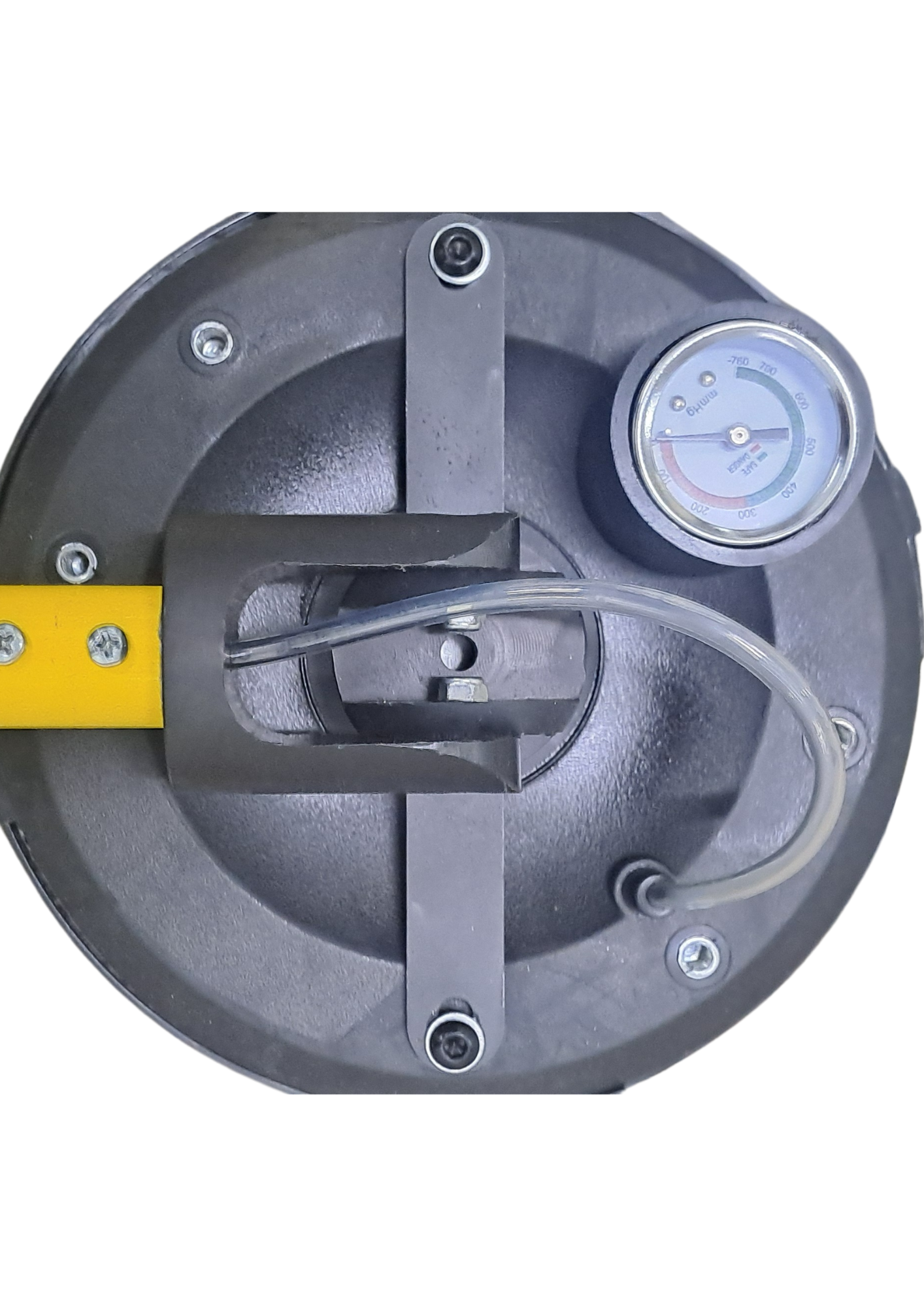

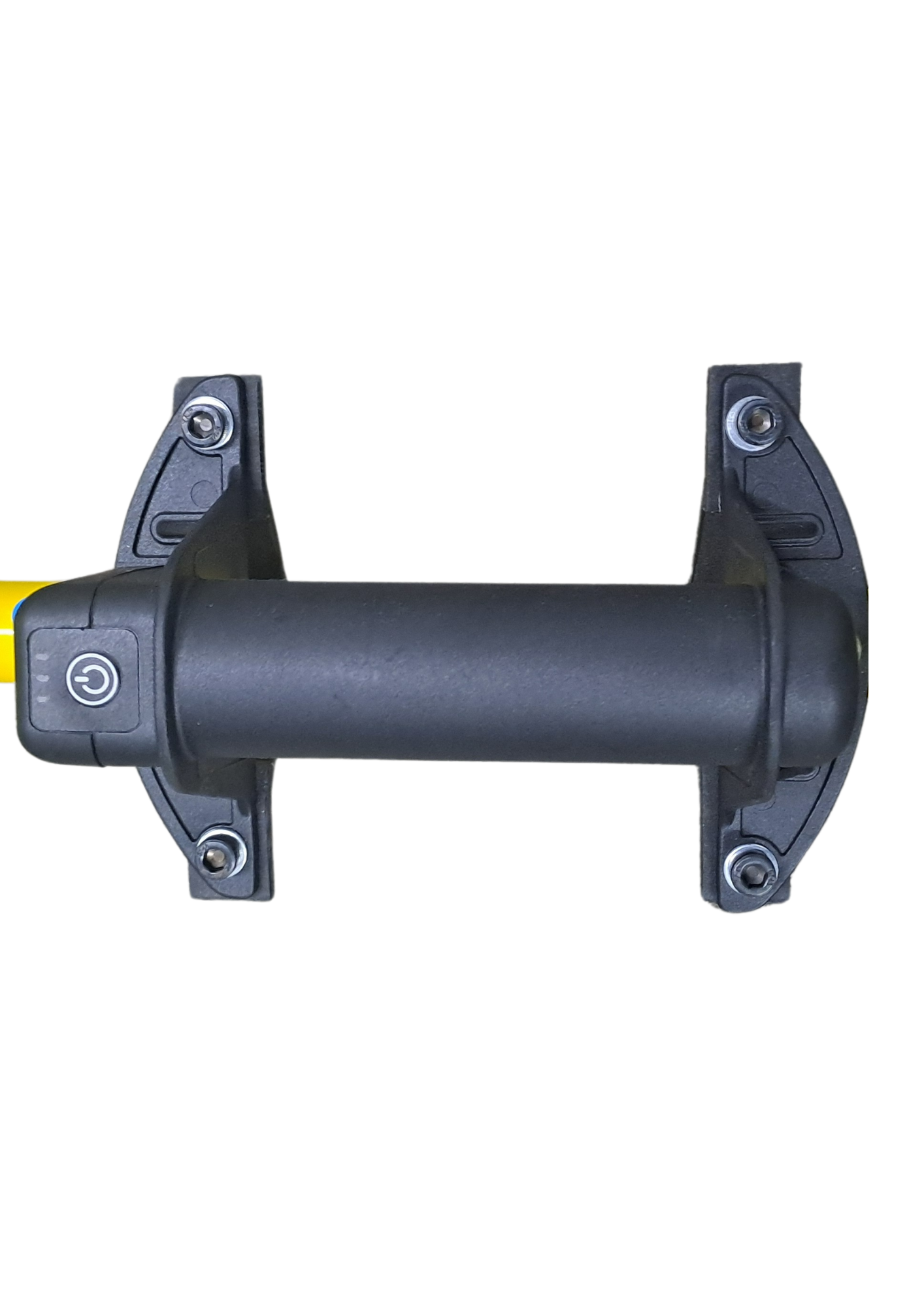

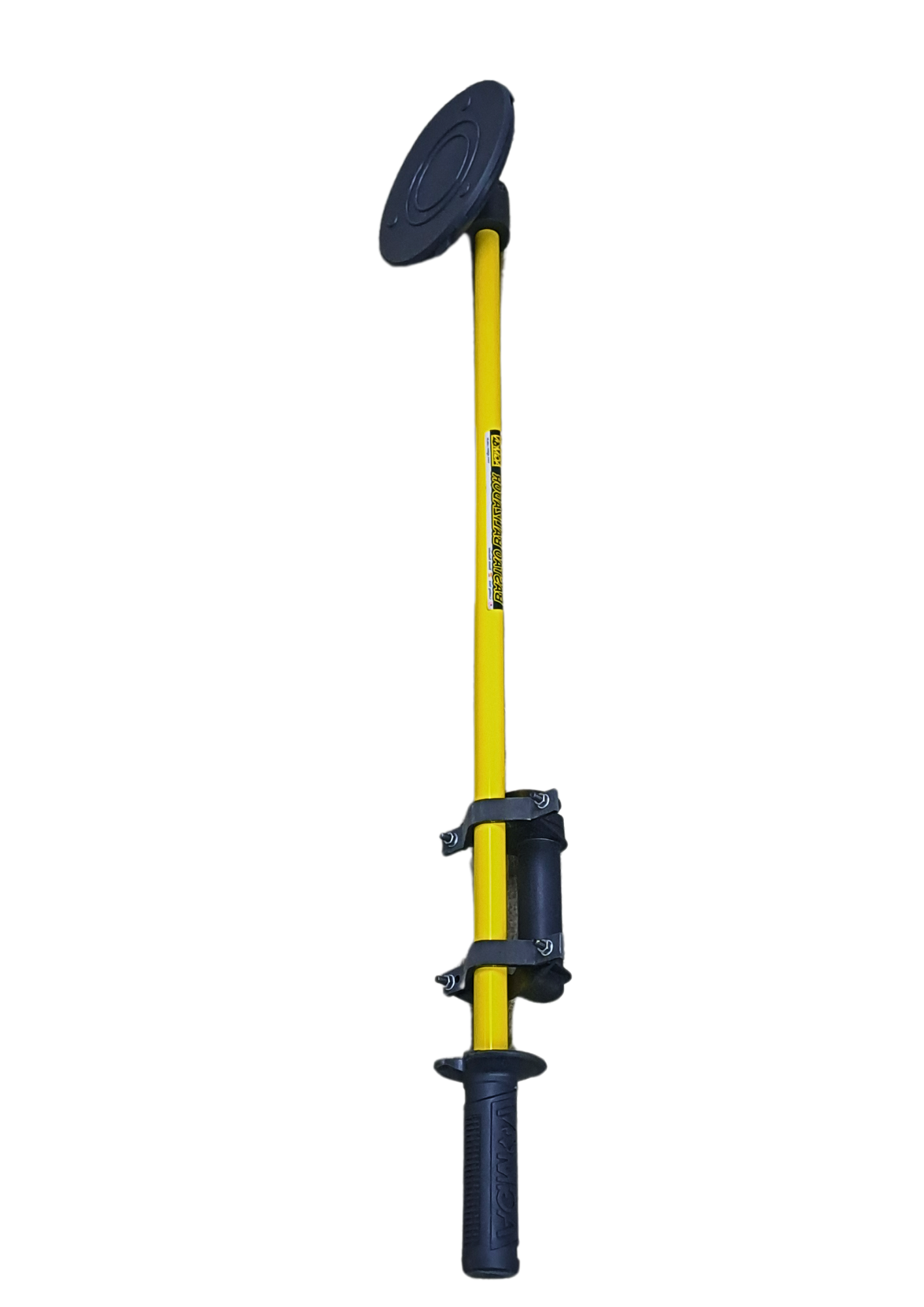

The Automatic Suction was designed to facilitate the handling of parts with smooth and flat surfaces, such as glass and steel sheets. Equipped with a suction cup with high suction capacity, it can support loads of up to 100 kg. To attach the suction cup to the load, simply position it on the desired surface, apply light pressure and press the button about 4 times to ensure adequate adherence.
Available sizes
0,50m / 19.6” Code: 1.09.0098
0,75m / 29.5” Code: 1.09.1602
1,00m / 39.3” Code: 1.09.0100
1,25m / 49.2” Code: 1.09.0101
1,50m / 59” Code: 1.09.0953
1,75m / 68.8” Code: 1.09.0103
2,00m / 78.7” Code: 1.09.0104
Dowload Data Sheet
Here's how works Suction
